Updating SCCM (System Center Configuration Manager) Current Branch to version 1906

Introduction

Yesterday happened to be one of those #SCCM Fridays. And a big and awesome one indeed. So awesome I had to take a break from my vacation to catch up on the latest and greatest. 🙂

Configuration Manager Current Branch version 1906 was released and as with previous versions, I will walk you through the update process based on my own environment. I do this before touching base with some of the new and delicious features in upcoming posts.

Early Update Ring

The first step in this process is to opt-in for the 1906 update. As with previous releases, this is a initial requirement. The alternative is to wait a few weeks and the update will show in the console automatically.

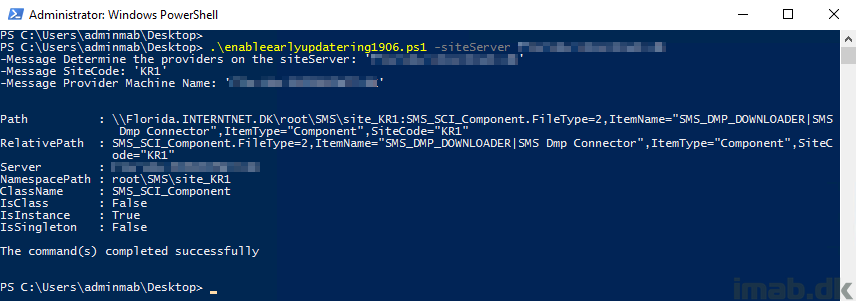

  • When downloaded and extracted (it comes as an .exe), fire up an elevated powershell and run it like shown below (enableearlyupdatering1906.ps1 <nameofyoursiteserver> (without the < >)

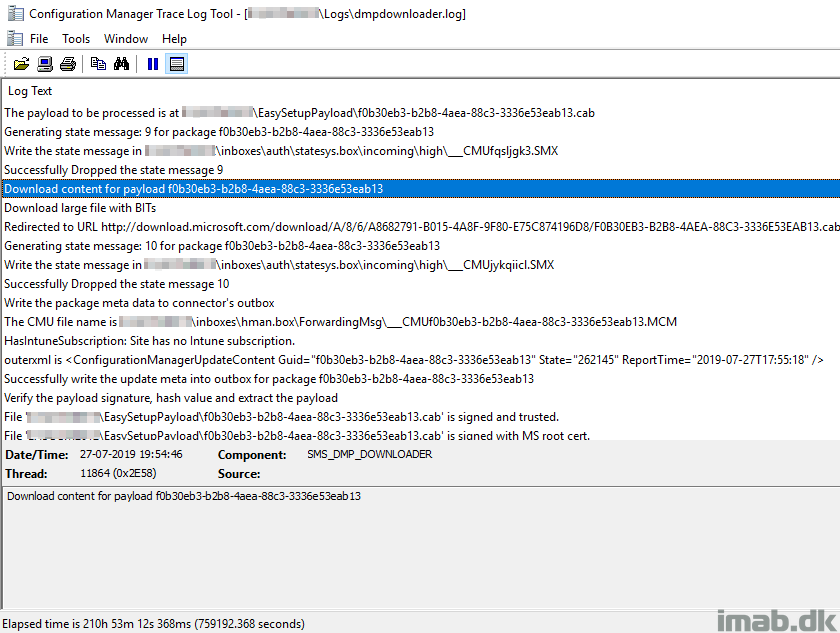

When the script is being successfully run, you will immediately notice activity in the dmpdownloader.log file on the site server:

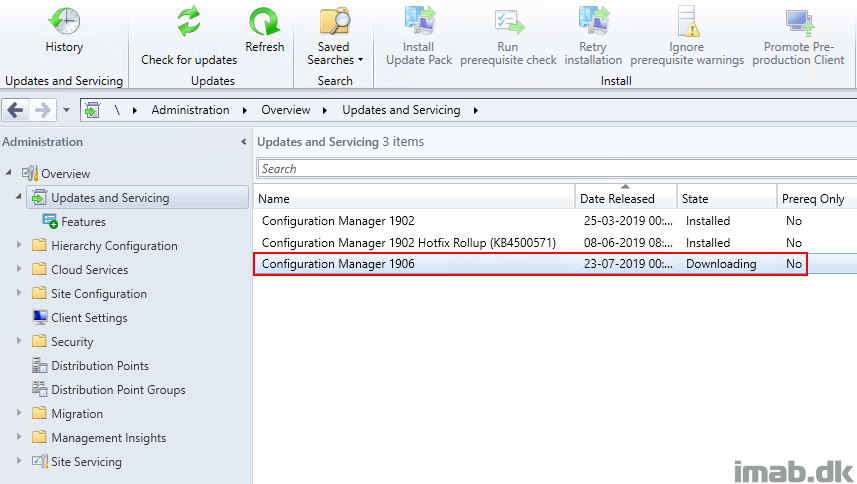

And once refreshing the console, the Configuration Manager 1906 update will also show in a downloading state:

Checklist

There is a checklist on how to update your Configuration Manager Current Branch to the latest version. Obviously, not everything listed in there is relevant to all environments, so therefore I’m only covering those parts relevant to me. If interested in the complete checklist, you can find that right here: https://docs.microsoft.com/en-us/sccm/core/servers/manage/checklist-for-installing-update-1906

Windows Update

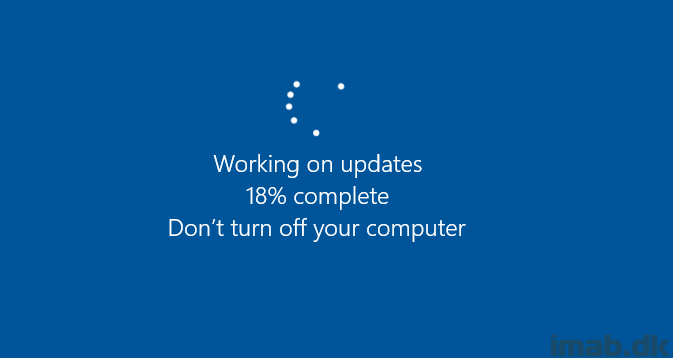

Make sure your site servers are fully patched with any pending Windows Updates. Also make sure the servers are being restarted if needed.

Review the Windows 10 ADK

ADK is the Windows Assessment and Deployment Kit, which is an external dependency when deploying operating systems with ConfigMgr. The minimum required for SCCM 1906 is the Windows 10 1903 ADK (10.1.18362), which also is the most recent version. I already use the 1903 ADK, so no need for me to do anything here. If you need the latest ADK, download that here: https://docs.microsoft.com/en-us/windows-hardware/get-started/adk-install

Also, more on Windows 10 ADK and SCCM support here: https://docs.microsoft.com/en-us/sccm/core/plan-design/configs/support-for-windows-10#windows-10-adk

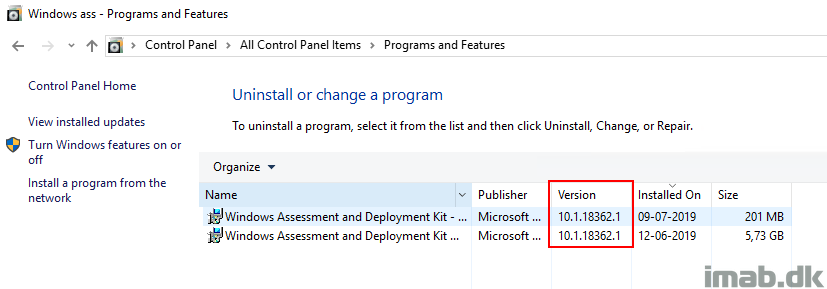

A quick peek at my site server where the correct Windows 10 ADK is installed:

Disable Maintenance Tasks

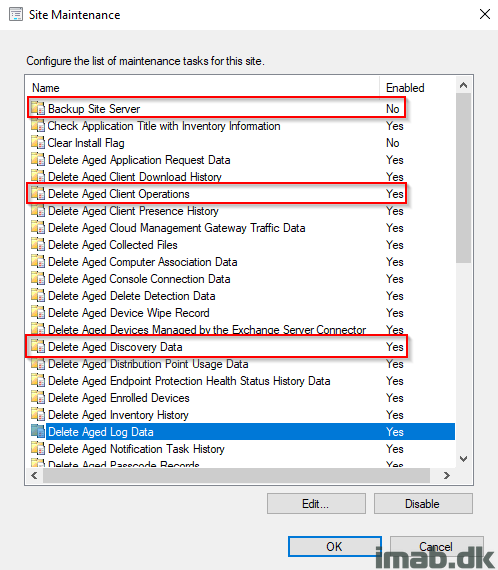

A good practice, also according to the checklist, is to disable following highlighted maintenance tasks. There is a chance that the upgrade might fail, if one of the mentioned tasks runs while the upgrade is running. (Another approach is to run the upgrade, outside the schedule of those tasks)

Backup

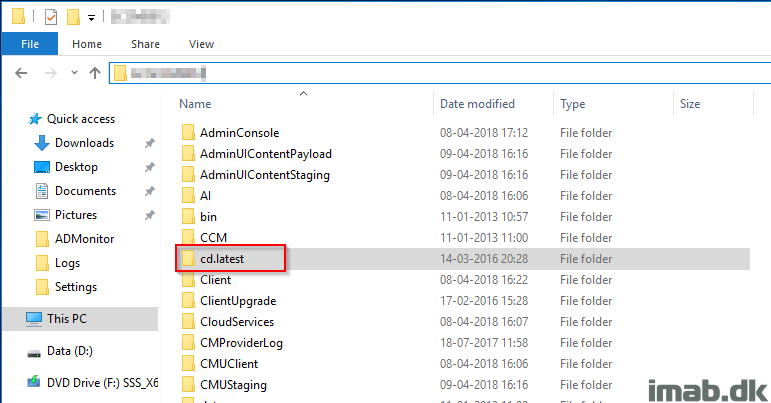

Make sure you have backup! Backup of the SQL and backup of the CD.latest folder. As per above screenshot, I’m currently not using the built in backup task (I use something custom in SQL), but whatever backup method you use, make sure you have a relevant backup. That includes both SQL and the CD.latest folder. The CD.latest folder can be found in the installation directory of Configuration Manager:

Disable Antivirus

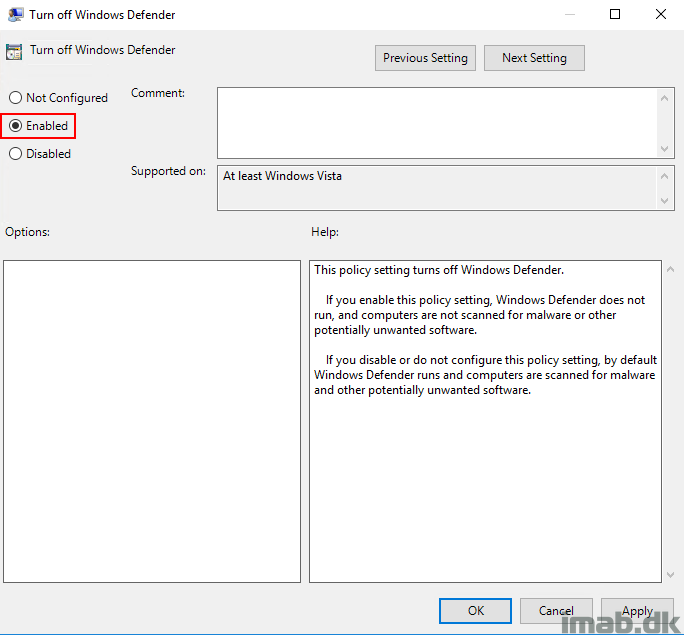

That’s right. The recommendation is to disable any running antivirus. My server is running Server 2016 and therefore comes with Windows Defender built in. To quickly disable Windows Defender, launch the Local Group Policy Editor from run: gpedit.msc and find Computer Configuration / Administrative Templates / Windows Components / Windows Defender and set Turn off Windows Defender to Enabled

Run Prerequisite Check

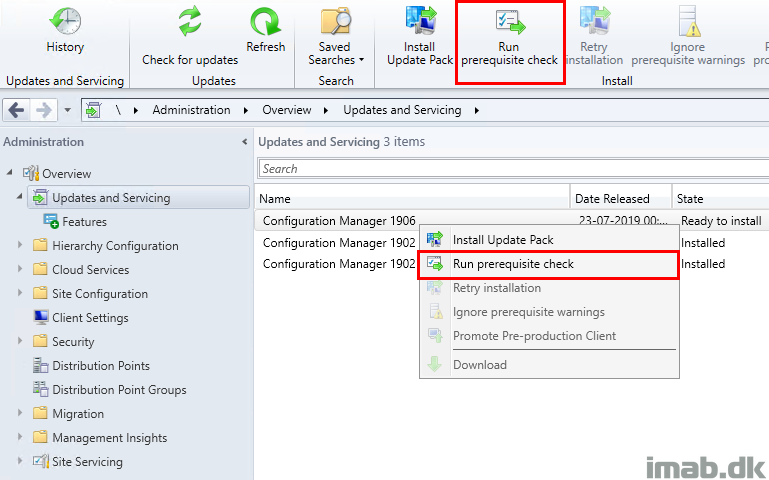

Back in the Configuration Manager Console in the Updates and Servicing note, it’s time to run the prerequisite check. Do so either in the ribbon or by right clicking on the Configuration Manager 1906 update as shown below:

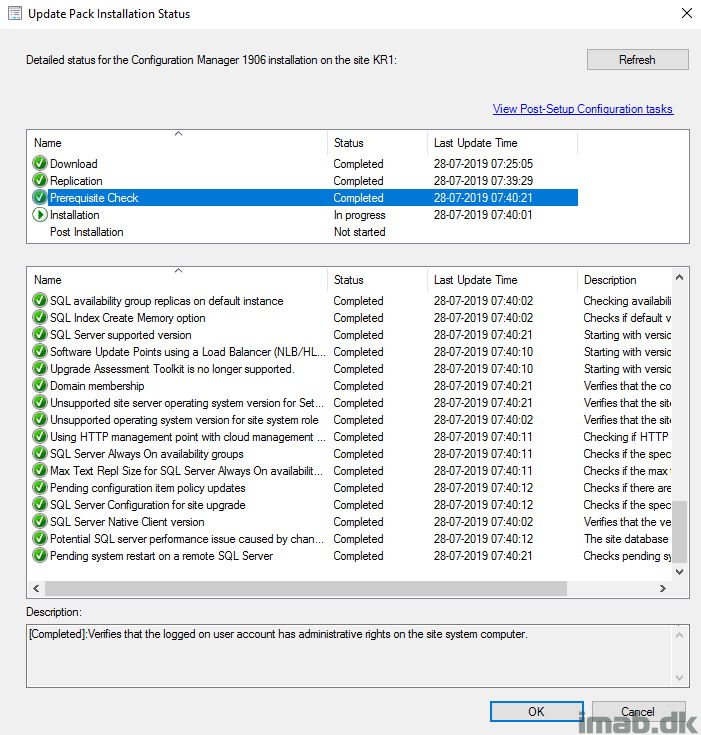

The status of the Prerequsite Check can be monitored in the Configuration Manager console in the Monitoring ->  Updates and Servicing Status node:

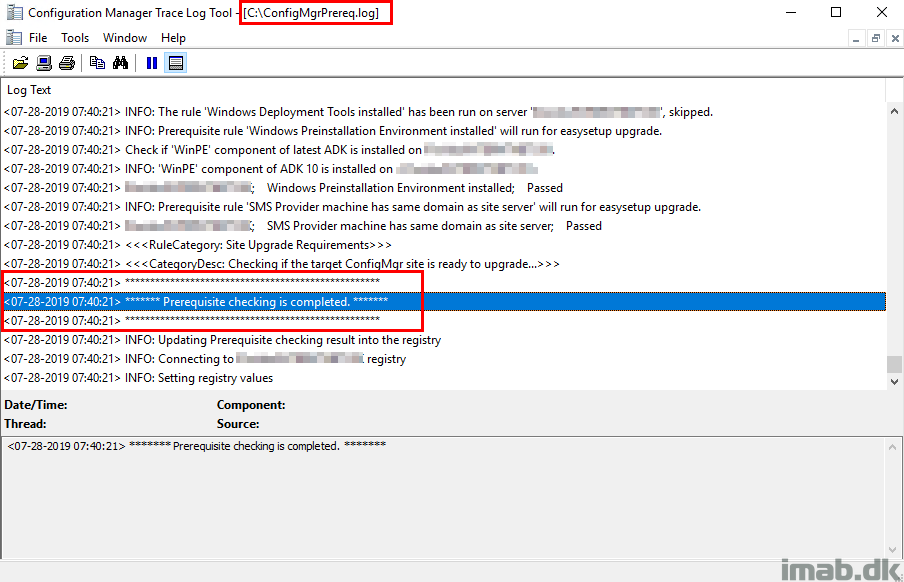

Or by monitoring the C:\ConfigMgrPrereq.log file. When all done, the log file will yield ***** Prerequisite checking is completed. *****

Install Update Pack

With the all the prerequisite checks passed, it’s time to install the actual update.

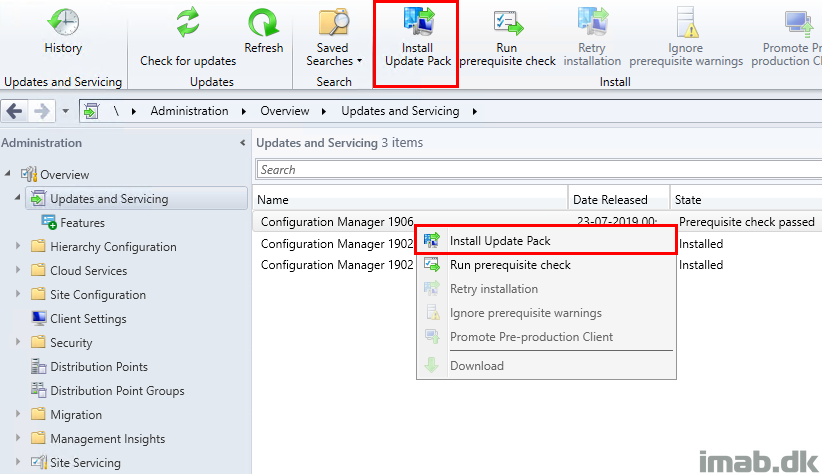

  • Click Install Update Pack in the console and complete the wizard as shown below:

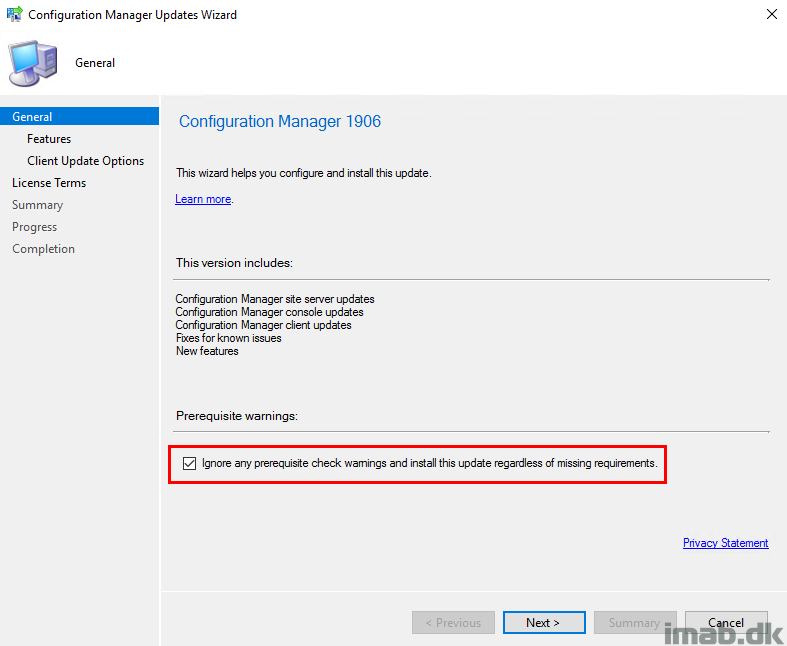

  • Ignore the prerequisite checks – we already did that:

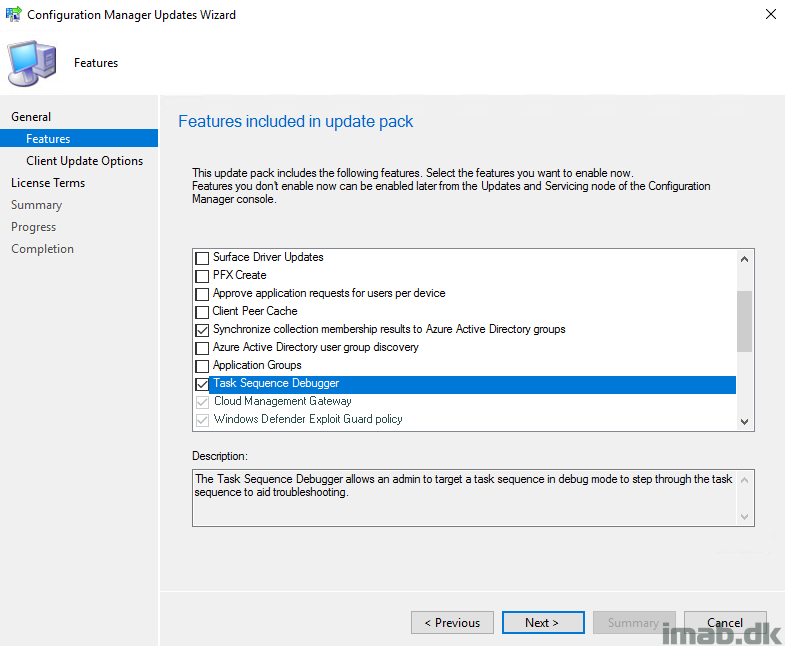

  • Select and enable optional features. They can also be added later, post-update:

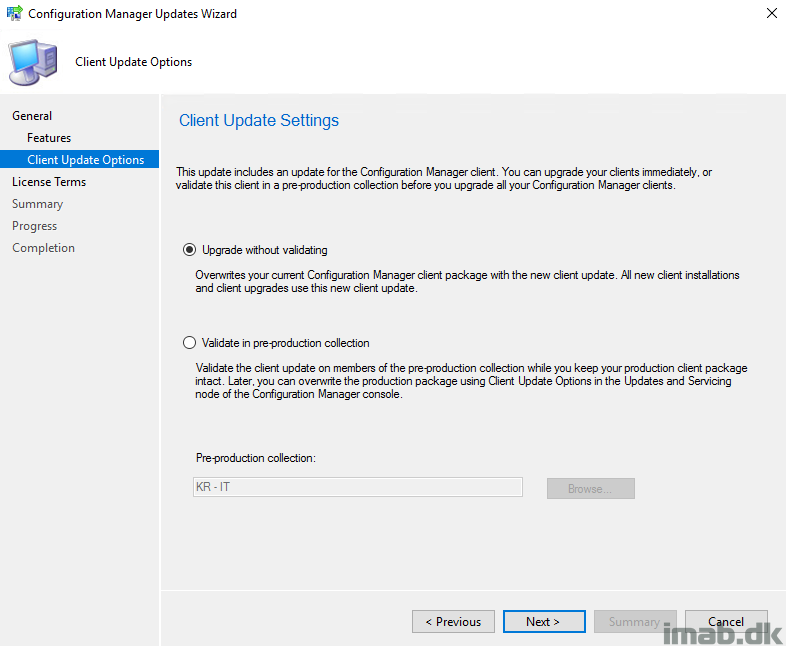

  • Make a selection of whether you want to test the new SCCM client or not. I went on without testing it (I have never ever seen any issues that made me wish that I tested the client first in pre-production, but I’m also testing Technical Previews)

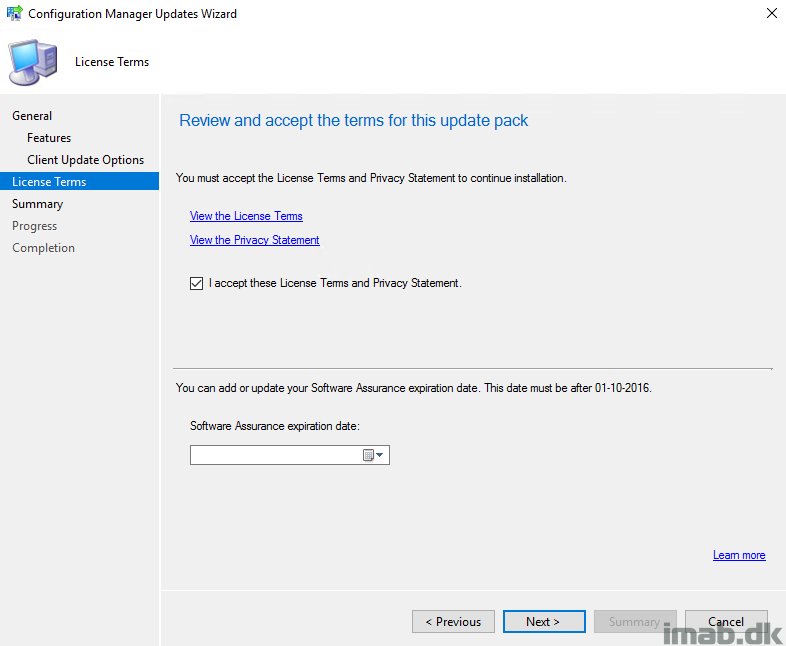

  • Accept the license terms. Filling out the SA expiration date is optional. I didn’t fill it out. This is the final step before getting the mandatory summary

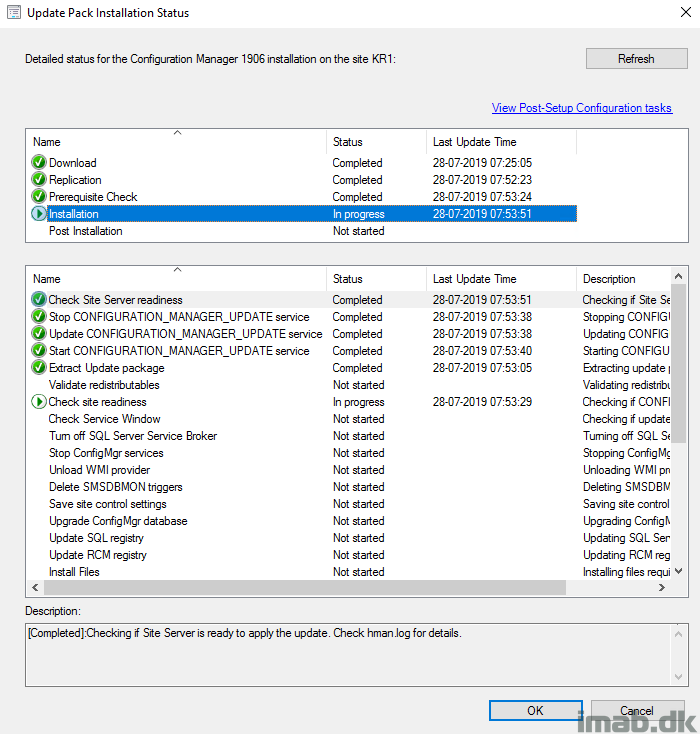

  • By now the upgrade is installing. The progress can be followed in the Monitoring / Updates and Servicing Status node. Use refresh regularly as the status is not real time:

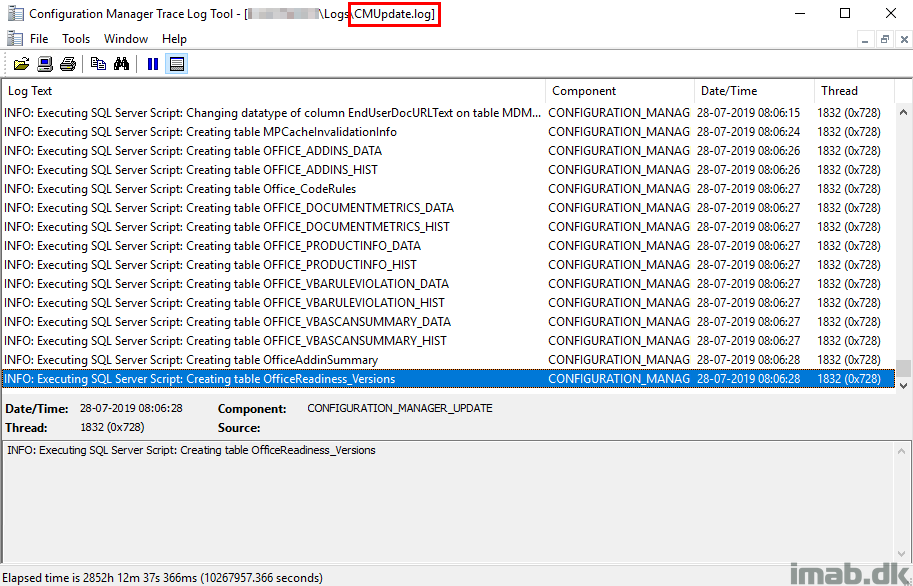

  • Monitor SCCM-InstallDir\Logs\CMUpdate.log and SCCM-InstallDir\Logs\hman.log if curious to see what happens real time:

Update Completed

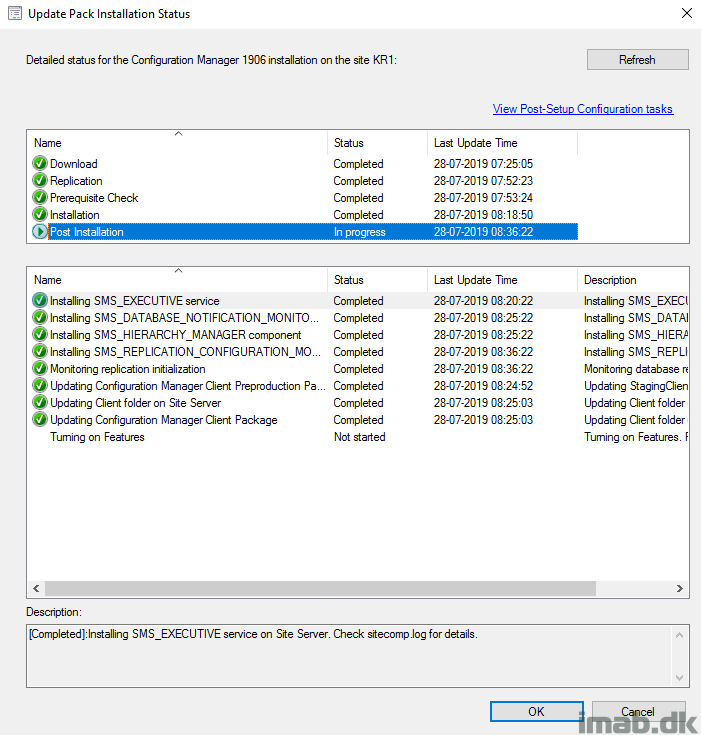

  • Once everything is done, the Update Pack Installation Status will display something similar to below:

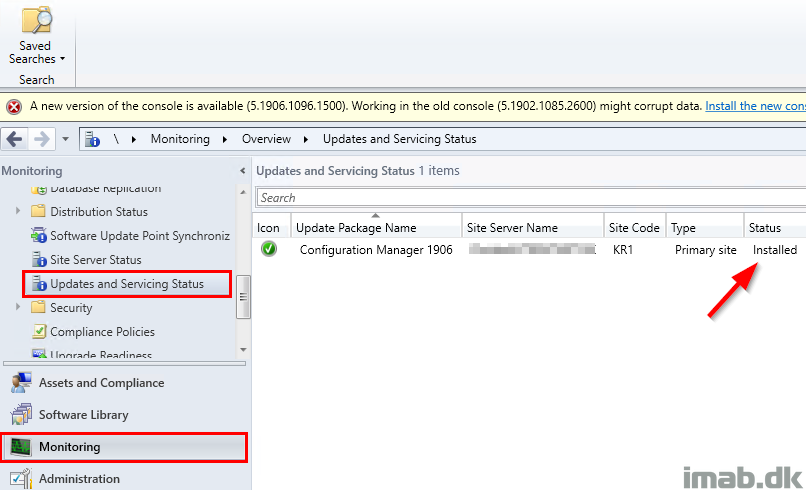

  • And the Updates and Servicing Status in the console will be noting the update as Installed:

Post Upgrade Steps

  • Update Configuration Manager consoles
  • Review site status and component status
  • Enable the maintenance tasks that previously was disabled

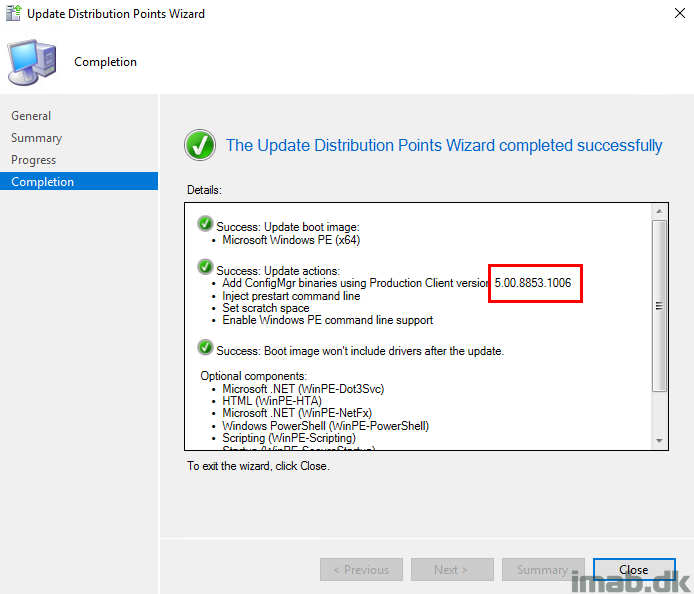

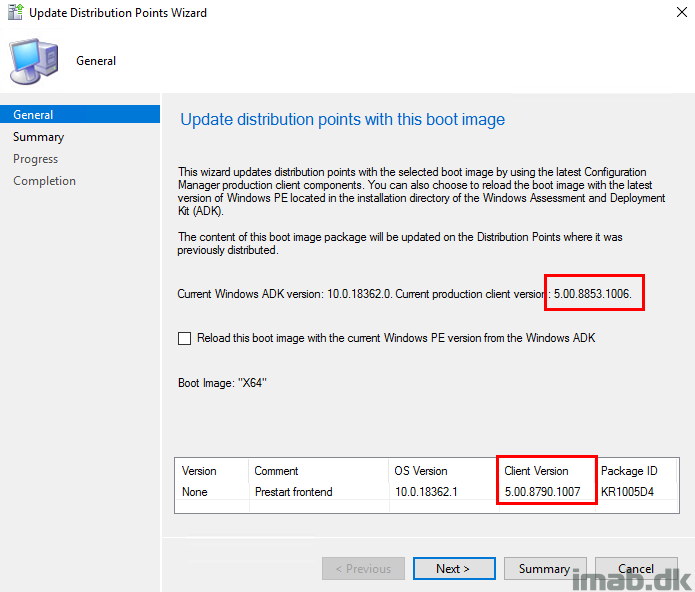

  • Update custom boot images: Run Update Distribution Points on all your boot images to include the latest client components

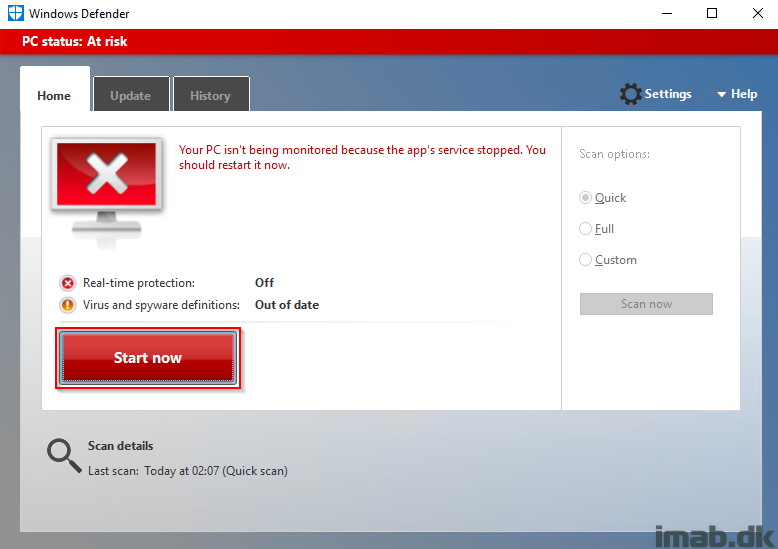

  • Enable Windows Defender that previously was disabled through the Local Group Policy Editor. When you do so, make sure to start the Defender service again. Start now

Now off to enjoying and blogging some of the new awesome and delicious features.

ENJOY and stay tuned 🙂
