How I deploy, configure and set the new Microsoft Edge as default browser using Microsoft Intune and Configuration Manager


Unless you have been hiding under a rock lately, you should be aware that the new Microsoft Edge browser happened and was released in the first stable release on January 15.

All very exciting and delicious, and we who have been testing with Dev and Beta versions across our enterprises, have been waiting eagerly to be able to offer the one browser to rule them all (hopefully).

So this is a little something on how I have chosen to deploy, configure and set the new Microsoft Edge as default browser, using a combination of both Microsoft Intune and Configuration Manager.

Deployment with ConfigMgr

Starting with Configuration Manager version 1910, you can leverage a built-in feature to create and deploy Microsoft Edge as an application.

Prior to 1910, you would simply create the application or package/program manually and deploy that.

For good measures, here’s a peek at the new feature within 1910 which doesn’t require much introduction and is self-explanatory:

However, I chose not to fully go with this new feature, as I’m not a fan of the deployment type being based on a Powershell script. I did use the feature to easily download the binaries and create the application, but I created 2 new deployment types based on the .MSI instead.

The native Powershell script disables auto updating within the registry, and I don’t want to mix management of settings with the actual deployment. Do whatever you prefer in this scenario. 🙂

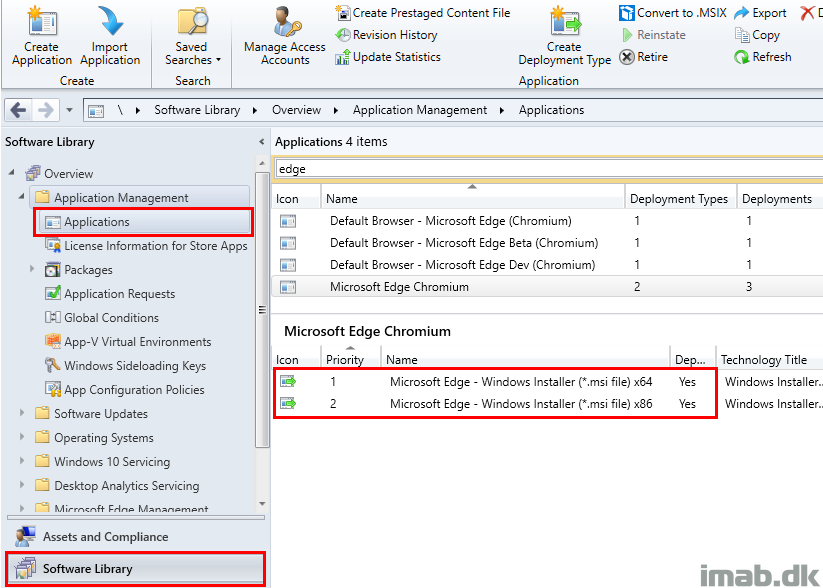

Again, for your convenience, here’s a few snippets of the new deployment types as well as the new installation/uninstallation programs. Also notice I offer repairing of the installation for the available deployment:

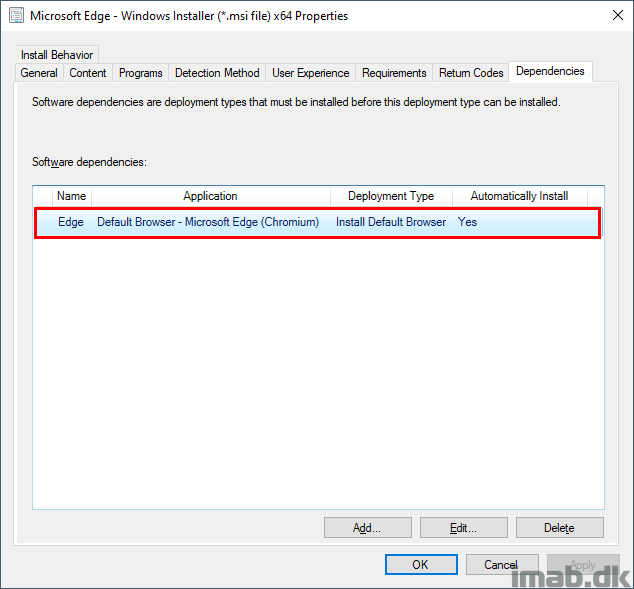

I’m touching base with the details on this later on (Powershell script explained), but as an dependency to the actual installation, I’m modifying the default associations configuration file (.XML file) to now configure the new Microsoft Edge as the default browser.

Configuration with Intune

I have chosen to do all the configuration of the actual browser using Microsoft Intune. I do this because I try to steer away from using Group Policy and all my devices are hybrid joined and co-managed.

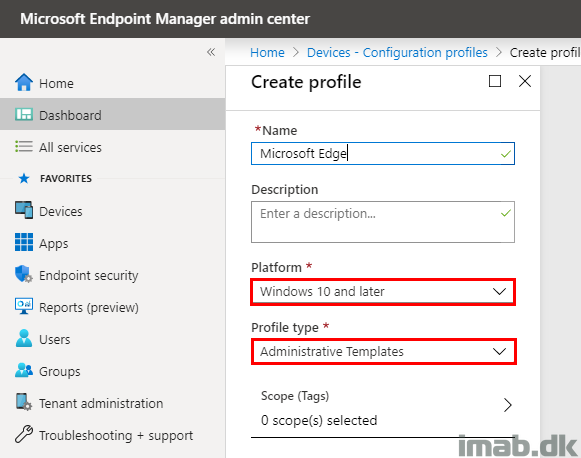

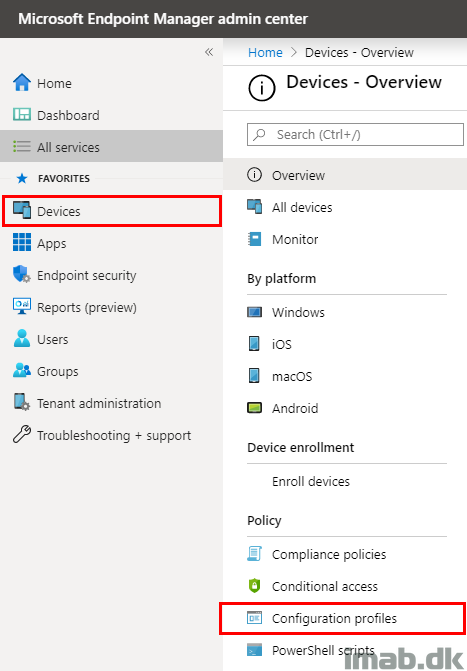

  • Simply create a new Configuration Profile similar to below:

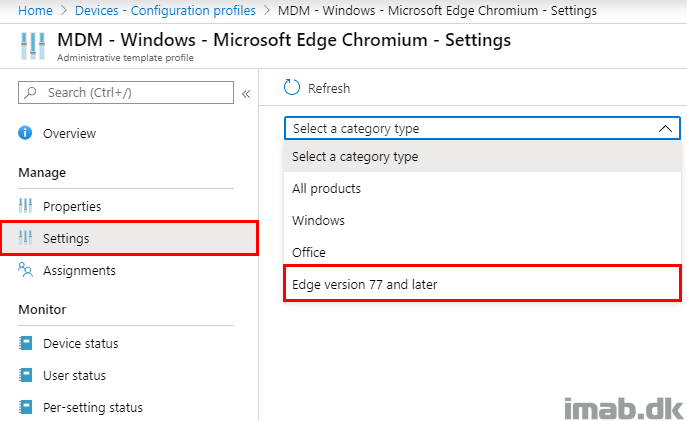

  • And find all the available settings for Microsoft Edge in the settings menu and in the category drop down as shown below:

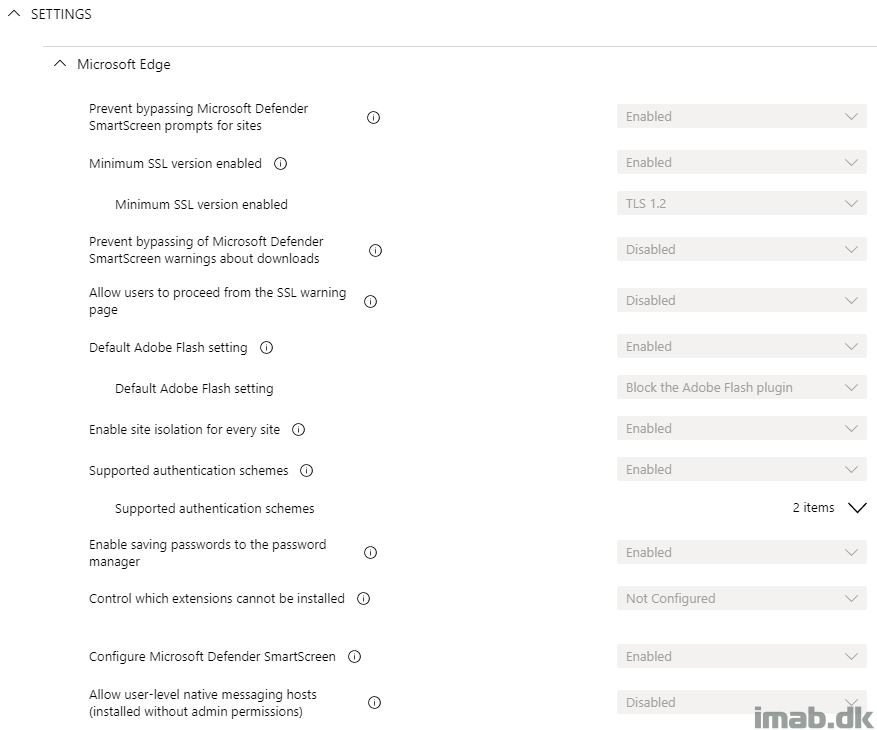

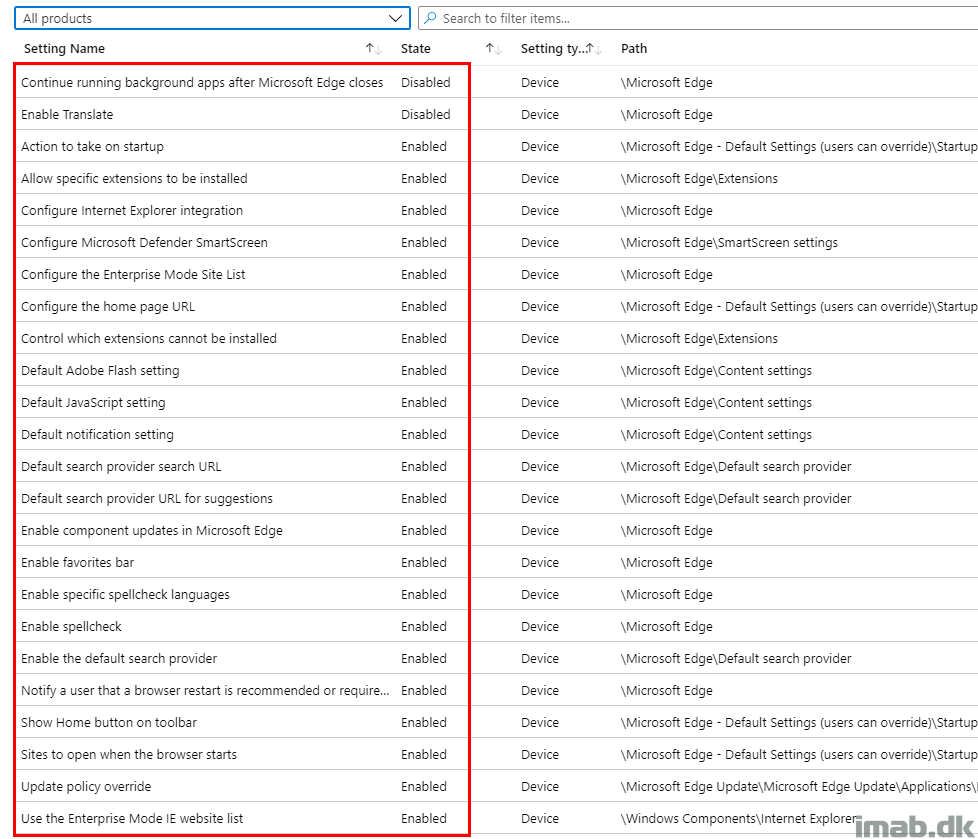

There are currently 17 pages of settings when browsing them in Microsoft Intune. That’s quite the amount of settings, and obviously not all apply to all environments. This is a snippet of those I’m currently managing:

Internet Explorer Mode

Out of all the settings available, the most noteworthy I believe is Internet Explorer Mode.

We deploy the new Microsoft Edge with the intention of replacing the need to launch any other browser. That includes Internet Explorer, and a great beginning on that journey is to enable IE mode for those pesky legacy sites.

If going to edge://compat/iediagnostic you will be able to verify and see how IE mode currently is configured.

Update 30 January 2020: Below obstacle has since been resolved with an Windows Update, now only requiring the Edge policy in order to work. 🙂

Important: In my environment, I had to configure BOTH the IE policy and the Edge policy for the Enterprise Mode site list. If I didn’t do so, my Internet Explorer mode was listed with the number 4 and things started to not work as intended.

According to how I interpret the docs, the number should return 7 and not anything else. Also according to docs, configuring the Enterprise Mode site list for Edge should override the settings coming from the IE policy.

More info:

Default Associations File

As mentioned earlier, the default browser in my environment is managed through the default associations configuration file.

This is something that both can be managed via Intune and the Policy CSP, as well as Group Policy if domain joined.

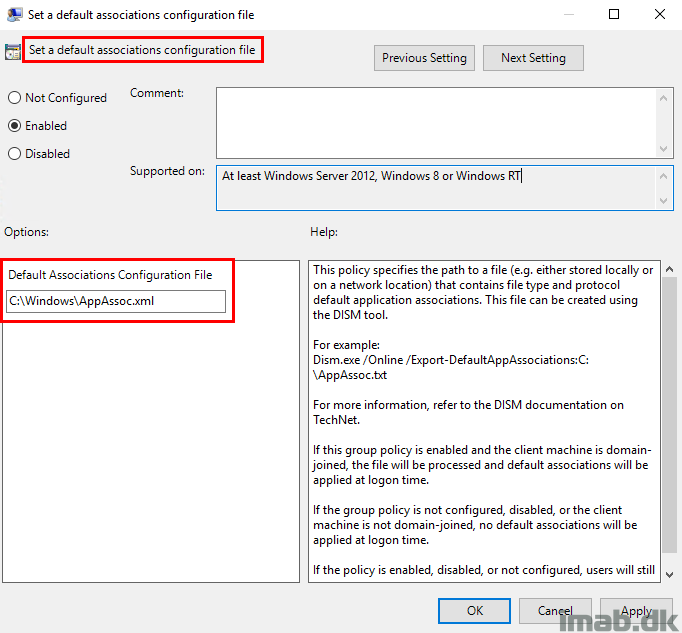

Group Policy (which I currently use):

Setting the default browser to Microsoft Edge is done by replacing/adding the following identifiers to the .XML file:

  • .htm
  • .html
  • http
  • https
<Association ApplicationName="Microsoft Edge" ProgId="MSEdgeHTM" Identifier=".html"/>
<Association ApplicationName="Microsoft Edge" ProgId="MSEdgeHTM" Identifier=".htm"/>
<Association ApplicationName="Microsoft Edge" ProgId="MSEdgeHTM" Identifier="http"/>
<Association ApplicationName="Microsoft Edge" ProgId="MSEdgeHTM" Identifier="https"/>

I’m modifying my existing .XML file using following Powershell script.

The script does following in headlines:

  • Loads the function to modify the xml app association file
  • Get location and content of the specified xml file
  • Modifies the xml based on input as parameters
  • Writes to registry to use as detection methods in ConfigMgr
param (
	[Parameter(Mandatory = $true)]
	[string] $Path,
	[Parameter(Mandatory = $true)]
	[string] $Extension,
	[Parameter(Mandatory = $true)]
	[string] $ProgId,
	[Parameter(Mandatory = $true)]
	[string] $AppName

function ProcExt ([string]$fExtension, [string]$fProgId, [string]$fAppName) {
	$xmlNode = $appAssocXml.DefaultAssociations.Association | Where-Object Identifier -eq $fExtension
	$newNode = $appAssocXml.CreateElement("Association")
	$attrIdentifier = $appAssocXml.CreateAttribute("Identifier")
	$attrIdentifier.Value = "$($fExtension)"
	$attrProgId = $appAssocXml.CreateAttribute("ProgId")
	$attrProgId.Value = "$($fProgId)"
	$attrAppName = $appAssocXml.CreateAttribute("ApplicationName")
	$attrAppName.Value = "$($fAppName)"

	if (-NOT([string]::IsNullOrEmpty($xmlNode))) {
		$currentApp = $xmlNode.ApplicationName
		Write-Verbose -Verbose "Extension is currently assigned to $($currentApp). Overwriting."
		$rootNode.ReplaceChild($newNode, $xmlNode)
	else {
		Write-Verbose -Verbose "Extension is currently not assigned to an application. Adding new."

$Company = ""
$Path = (Get-Item $Path).FullName
$appAssocXml = [xml](Get-Content $Path)
$rootNode = $appAssocXml.SelectSingleNode("DefaultAssociations")
$extensions = "$($Extension),"
$arrExtensions = $extensions.Split(",", [System.StringSplitOptions]::RemoveEmptyEntries)

foreach ($item in $arrExtensions) {
	ProcExt $item.ToLower() $ProgId $AppName

if ($AppName -eq "Microsoft Edge Dev") {

    Write-Verbose -Verbose "$AppName SELECTED"
    $RegistryPath = "HKLM:\Software\$Company"
    if (-NOT(Test-Path -Path $RegistryPath)) {
        New-Item -Path $RegistryPath –Force
    New-ItemProperty -Path $RegistryPath -Name DefaultBrowser -Value $AppName -PropertyType STRING -Force

if ($AppName -eq "Microsoft Edge Beta") {

    Write-Verbose -Verbose "$AppName SELECTED"
    $RegistryPath = "HKLM:\Software\$Company"
    if (-NOT(Test-Path -Path $RegistryPath)) {
        New-Item -Path $RegistryPath –Force
    New-ItemProperty -Path $RegistryPath -Name DefaultBrowser -Value $AppName -PropertyType STRING -Force

if ($AppName -eq "Microsoft Edge") {

    Write-Verbose -Verbose "$AppName SELECTED"
    $RegistryPath = "HKLM:\Software\$Company"
    if (-NOT(Test-Path -Path $RegistryPath)) {
        New-Item -Path $RegistryPath –Force
    New-ItemProperty -Path $RegistryPath -Name DefaultBrowser -Value $AppName -PropertyType STRING -Force

Using the script with ConfigMgr

Using the script with Configuration Manager is straight forward. Create an application with a script deployment type and with following installation program:

  • powershell.exe -ExecutionPolicy Bypass -NoLogo -NonInteractive -NoProfile -WindowStyle Hidden -File .\Switch-DefaultBrowser.ps1 -Path C:\Windows\AppAssoc.xml -Extension “.htm,.html,http,https” -ProgId “MSEdgeHTM” -AppName “Microsoft Edge”

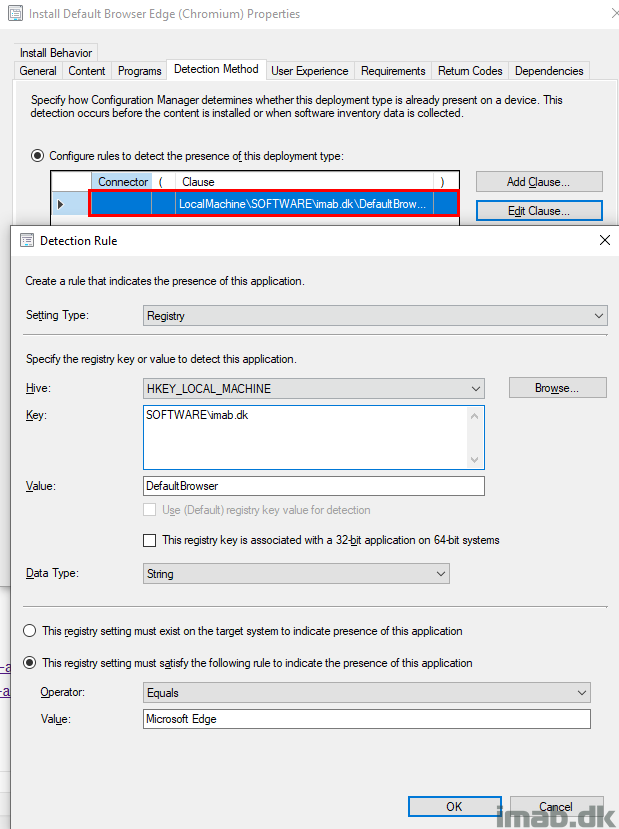

Use the registry tattooing as detection methods like so:

Software Center

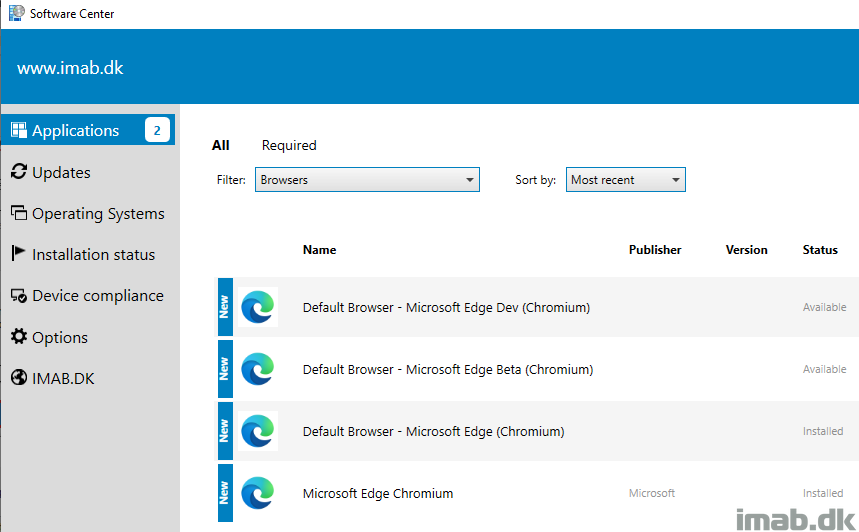

Making an option to switch the default browser to all the various channels of Microsoft Edge through the Software Center can look like below illustration:

Security Baseline

Microsoft Intune also offers a preview Security Baseline for Microsoft Edge. I suggest you have a peek as this too while at it.

It currently only contains a handful of settings, but some of them is highly recommended, while others are not depending on your environment.

Legacy Edge

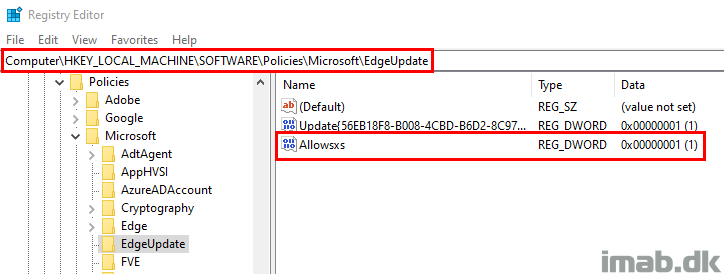

If you intend to keep the legacy Edge browser, you can do so by adding following registry entry PRIOR to installing the new Microsoft Edge.

More information
